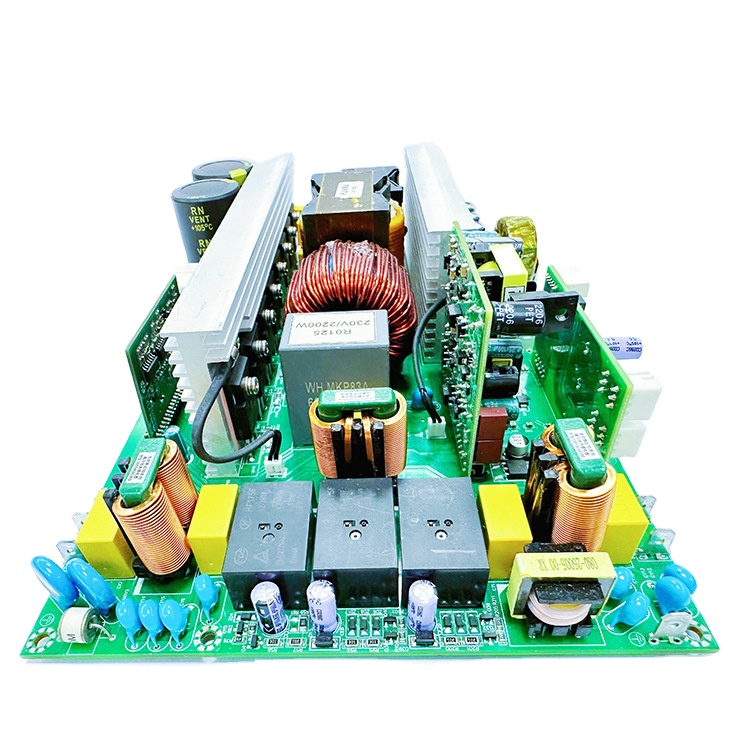

We are a leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. With certifications including UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we provide top-quality products and services.
Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions.
Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services. We are committed to delivering cutting-edge solutions and exceeding customer expectations in the dynamic electronics industry.
As PCBs are custom products, returns are not supported. For quality issues, please contact customer service for a refund or replacement, but we do not bear any losses or costs beyond the product value. Delays in delivery due to force majeure factors such as power outages or water supply interruptions will not be compensated.
If there are any issues or special instructions, please communicate directly with customer service for confirmation. Do not leave messages, as we will not be responsible for any missed messages. Before and after payment, please confirm the process, quantity, and layers with customer service. Problems that arise after production or shipment will not be eligible for refunds. Since this product requires a high level of expertise, if the purchasing personnel are not knowledgeable, please confirm with your engineer or customer service. We will not be responsible for any issues caused by the customer's lack of understanding.
Calculation Orders placed before 17:00 are considered as placed on the same day; orders placed after 17:00 are considered as placed the next day. "24-hour delivery" refers to one day, not 24 hours. The delivery time provided by customer service and on the page does not include Sundays or holidays.
Green solder mask, white silkscreen, 1.6mm board thickness, HASL, 1oz copper thickness, vias with solder mask, line width/spacing 0.2mm, vias above 0.3mm. The Gerber format is used according to the provided files. (The quotation is based on standard processes; please inform customer service of any special process requirements for a new quotation.)
| Rigid PCB Manufacturing Capability | ||
|---|---|---|
| Category | Volume Production | Sample Processing |
| Layer count | - | 1-68L (64 Layer max) |
| Max thickness | - | 10mm (394mil) / 14mm (551mil) |
| Min line width/space (Inner) | 2.2mil / 2.2mil | 2.0mil / 2.0mil |
| Min line width/space (Outer) | 2.5mil / 2.5mil | 2.2mil / 2.2mil |
| Alignment (core board) | ±25um | ±20um |
| Alignment (Inner layer) | ±5mil | ±4mil |
| Max copper | 6Oz | 30Oz |
| Hole size (Mechanical) | ≥0.15mm (6mil) | ≥0.1mm (4mil) |
| Hole size (Laser) | 0.1mm (4mil) | 0.050mm (2mil) |
| Max size (Unit) | 850mm x 570mm | 1000mm x 600mm |
| Max size (Panel) | 1250mm x 570mm | 1320mm x 600mm |
| Aspect ratio (Unit) | 20:1 | 28:1 |
| Aspect ratio (Panel) | 25:1 | 35:1 |
| Lead-free / Halogen-free | EM827, 370HR, S1000-2, IT180A, EM825, IT158, S1000 / S1155, R1566W, EM285, TU862HF | |
| High-speed Materials | Megtron6, Megtron4, Megtron7, TU872SLK, FR408HR, N4000-13 Series, MW4000, MW2000, TU933 | |
| High-frequency Materials | Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, CLTE, Genclad, RF35, FastRise27 | |
| Other Materials | Polyimide, Tk, LCP, BT, C-ply, Fradflex, Omega, ZBC2000 | |
| Surface Finish | HAL, HAL-LF, ENIG, IMMERSION TIN, OSP, IMMERSION SILVER, GOLD FINGER, Hard Gold / Soft Gold Plating | |
| Special Technologies | Blind & buried holes, Via in pad, Semi-plating holes, Counterbore, Step mounting holes, Drill Mixed RF PCB, Busbar PCB | |
We offer flexible shipping options tailored to your logistics requirements:
| Layer Count | Sample Shortest Lead Time | Sample Standard Lead Time | Mass Production Lead Time |
|---|---|---|---|
| 2 layer | 24 h | 3 days | 6-7 days |
| 4 layer | 36 h | 5 days | 8-10 days |
| 6 layer | 48 h | 5 days | 8-12 days |
| 8 layer | 72 h | 5 days | 9-12 days |
| 10 layer | 4 days | 7 days | 14 days |
| 12 layer | 4 days | 7 days | 16 days |
| 14 layer | 5 days | 8 days | 16 days |
| 16 layer | 5 days | 9 days | 18 days |
| 18 layer | 7 days | 10 days | 18 days |
| 20 layer and above | To be negotiated | To be negotiated | To be negotiated |
24h technical support & Gerber files handling. Complete EQ within 4-8 hours. Support for 400 new project engineering reviews.
RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, GC-CAM.
All processes running 24 hours. Production capability of more than 10K high-mix part numbers monthly. Over 100 QTA orders daily. One-step service from prototype to mass production.
24 hours quick response. 4 hours quick response for quotation.
