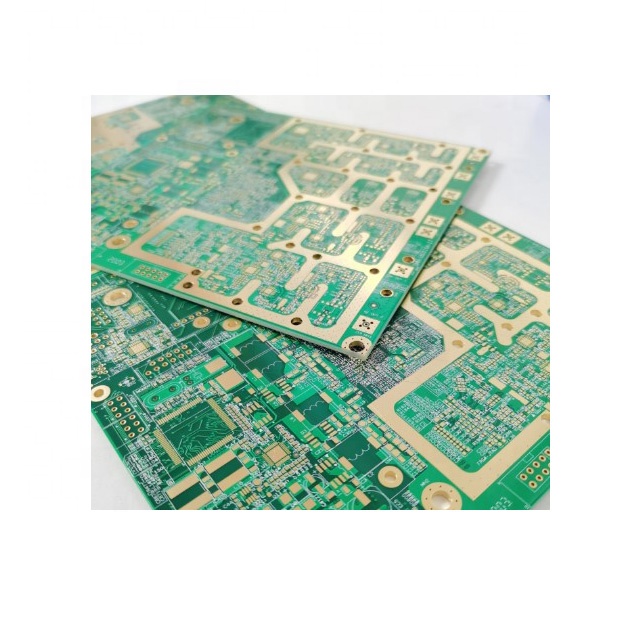

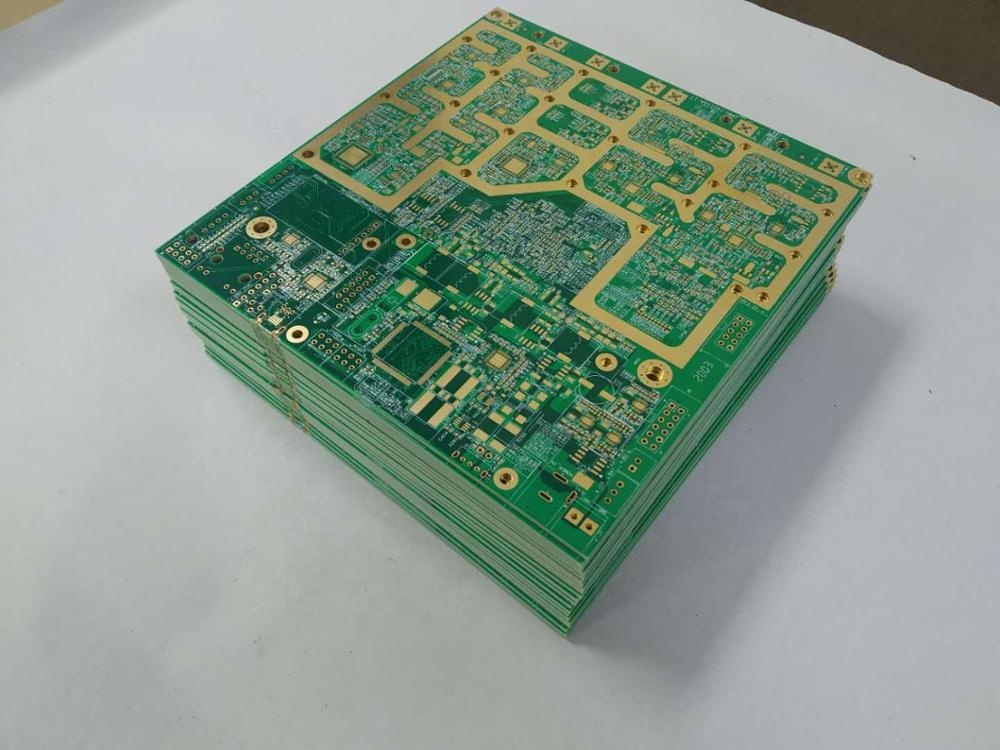

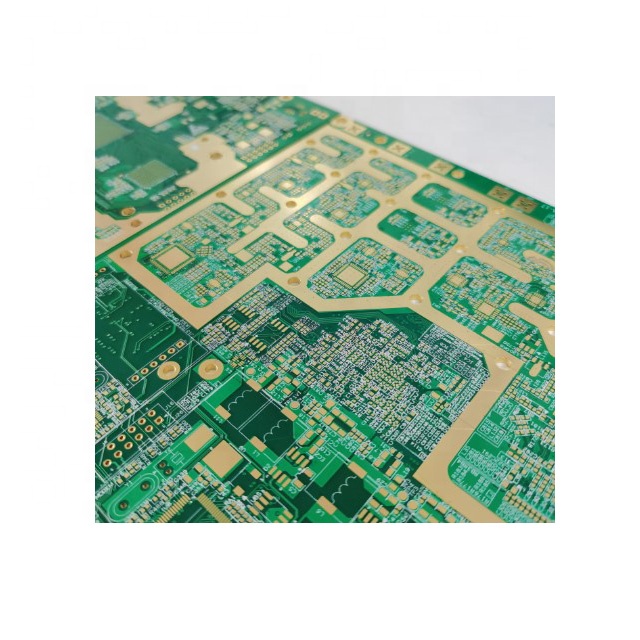

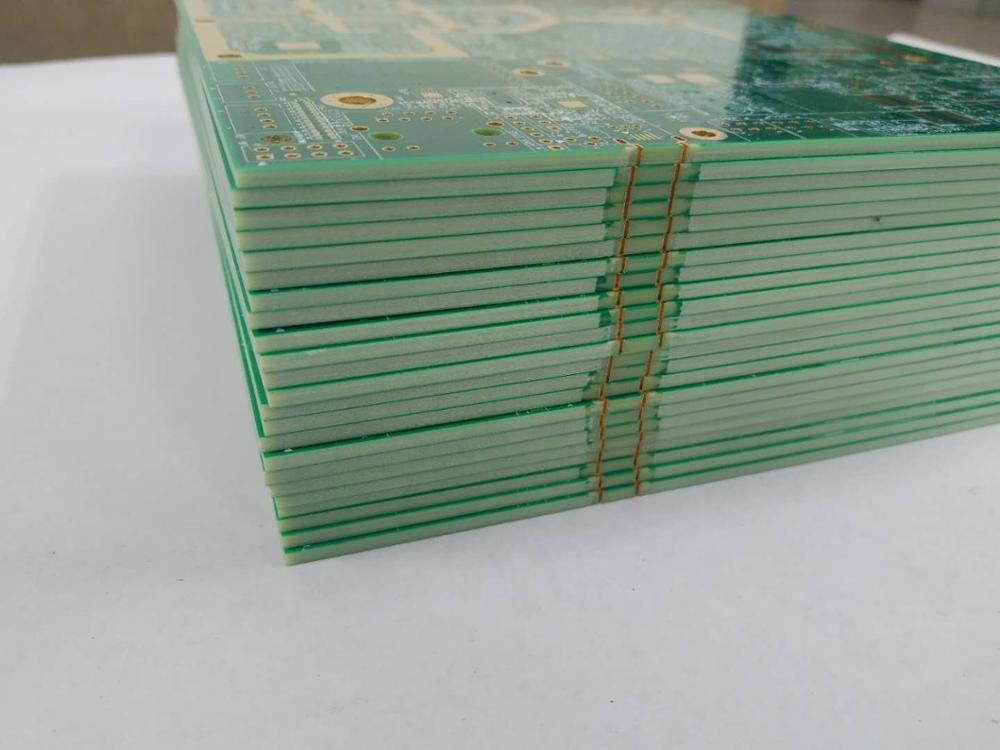

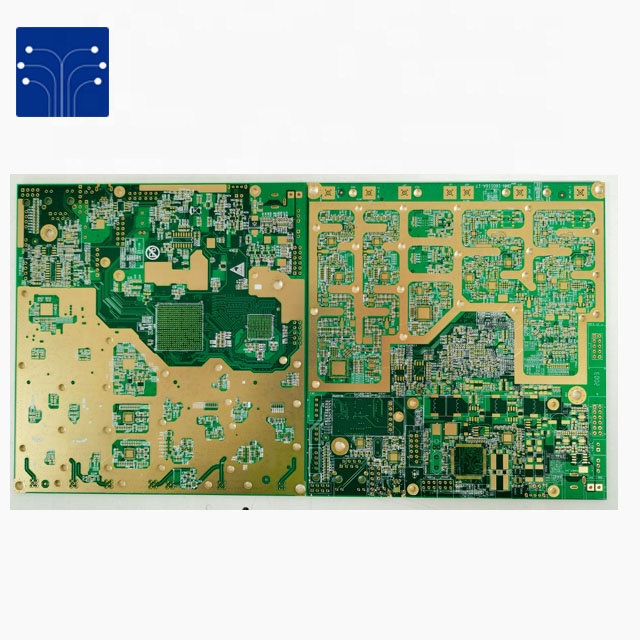

| Rigid PCB Manufacturing Capability | |||
|---|---|---|---|
| Category | Specification Detail | Volume Production | Sample Processing |
| Layer Count | Max capacity | 1-68L | 64 Layer |
| Max Thickness | Board thickness limit | 10mm (394mil) | 14mm (551mil) |
| Min Line Width / Space | Inner layer | 2.2mil / 2.2mil | 2.0mil / 2.0mil |
| Outer layer | 2.5mil / 2.5mil | 2.2mil / 2.2mil | |
| Alignment Capability | Alignment with core board | ±25um | ±20um |
| Inner layer alignment | ±5mil | ±4mil | |
| Max Copper Weight | Copper thickness | 6oz | 30oz |
| Holes Size | Mechanical drilling | ≥0.15mm (6mil) | ≥0.1mm (4mil) |
| Laser drilling | 0.1mm (4mil) | 0.050mm (2mil) | |
| Max Size | Unit size | 850mm x 570mm | 1000mm x 600mm |
| Panel size | 1250mm x 570mm | 1320mm x 600mm | |
| Aspect Ratio | Unit ratio | 20:1 | 28:1 |
| Panel ratio | 25:1 | 35:1 | |
| Materials Supported | Lead-free / Halogen-free | EM827, 370HR, S1000-2, IT180A, EM825, IT158, S1000 / S1155, R1566W, EM285, TU862HF | |
| High-speed material | Megtron6, Megtron4, Megtron7, TU872SLK, FR408HR, N4000-13 Series, MW4000, MW2000, TU933 | ||
| High-frequency material | Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, CLTE, Genclad, RF35, FastRise27 | ||
| Others | Polyimide, Tk, LCP, BT, C-ply, Fradflex, Omega, ZBC2000 | ||
| Surface Finishes | Finishing types | HAL, HAL-LF, ENIG, Immersion Tin, OSP, Immersion Silver, Gold Finger, Hard Gold / Soft Gold Plating | |
| Special Technology | Advanced capabilities | Blind & buried holes, Via in pad, Semi-plating holes, Counterbore, Step mounting holes, Mixed RF PCB, Busbar PCB | |
We ship PCB orders globally with the following standard options:
| Layer | Sample Shortest Lead Time | Sample Standard Lead Time | Mass Production Lead Time |
|---|---|---|---|
| 2 layer | 24 h | 3 days | 6-7 days |
| 4 layer | 36 h | 5 days | 8-10 days |
| 6 layer | 48 h | 5 days | 8-12 days |
| 8 layer | 72 h | 5 days | 9-12 days |
| 10 layer | 4 days | 7 days | 14 days |
| 12 layer | 4 days | 7 days | 16 days |
| 14 layer | 5 days | 8 days | 16 days |
| 16 layer | 5 days | 9 days | 18 days |
| 18 layer | 7 days | 10 days | 18 days |
| 20 layer and above | To be negotiated | To be negotiated | To be negotiated |
