TOP PCB Double Layer Board PCB Printing Making Machine China Manufacture Projector double side PCB design
Product Description
Our Advantages
-
✔
Program and functional test and package by Free.
-
✔
High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% functional test.
-
✔
Professional service: PCB/FPC/Aluminium Making, SMT, DIP, Component Sourcing, OEM with 12 years experience.
-
✔
Certifications: UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001, ISO13485, TS16949
-
✔
The warranty period for PCBA: 2 years.
-
✔
About Factory: 13 SMT Lines, 5 DIP Lines, 1 X-ray, 13 AOI, 2 Sample test machines.
PCB & PCBA Capacity
| Items |
Capacity |
| 1. Material |
FR4, (High Tg FR4, General Tg FR4, Middle Tg FR4), Lead-Free Solder Sheet, Halogen Free FR4, Ceramic Filling Material, Teflon, PI Material, BT Material, PPO, PPE etc. |
| 2. Board thickness |
Mass production: 394mil(10mm) Samples: 17.5mm |
| 3. Surface finish |
HASL, Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger |
| 4. PCB Max panel size |
1150mm × 560mm |
| 5. Layer |
Mass production: 2~58 layers / Pilot run: 64 layers, Flexible PCB: 1-12 Layers |
| 6. Min hole size |
Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm) |
| 7. PCBA QC |
X-ray, AOI Test, Functional Test |
| 8. Special Process |
Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control. |
| 9. Our service |
PCB, Turnkey PCBA, PCB Clone, Housing, PCB Assembly, Component sourcing, PCB manufacturing from 1 to 64 layers, One stop services. |
| 10. Sanforized |
Buried via, Blind via, Mixed Pressure, Embedded Resistance, Embedded Capacitance, Local Mixed Pressure, Local High Density, Back drill, impedance control. |
| 11. SMT Capacity |
700Million Points/Day |
| 12. DIP Capacity |
0.5Million Points/Day |
| 13. Certificate |
RoHS/ISO9001/TS16949/UL/ISO14001/ISO13485 |

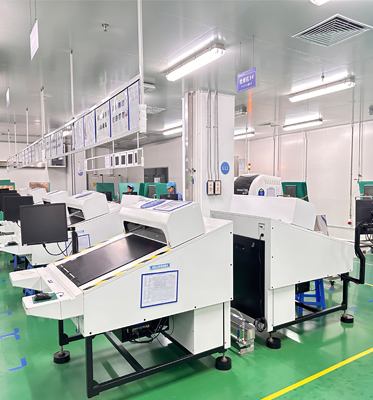

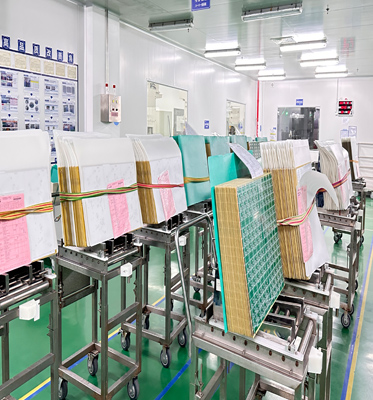

Product Display
About Us
We provide the following services to our clients: Schematic Design & Board Layout, PCB & FPC Manufacturing, Metal Injection Molding, Global Supply Chain Management, and PCB & PCB Assembly Service. We deliver the finished goods to you or provide drop shipping. If you require only one aspect of the above, we have the flexibility to match your needs and requirements.
We provide one-stop PCBA services, such as 0201/BGA/CCGA surface-mount (SMT), thru-hole (THT), mixed technology (SMT & thru-hole), conformal coating, potting and encapsulations, AOI/X-Ray PCBA testing, IC programming, and box building services. The PCBA is used in telecommunications, automotive electronics, 3G/4G/5G products, IoT products, AI smart control products, RF, networking, security, Industrial control, medical instrumentation, military products, computer peripherals, and other high-tech fields. We have a great reputation from our customers around the world.
Certificates
Customer Visitor & Feedback
Packing & Shipping
FAQ
Q:
What files do you use in PCBA fabrication?
A: Gerber or Eagle, BOM listing, PNP and Components Position.
Q:
Is it possible you could offer sample?
A: Yes, we can custom samples for your testing before mass production.
Q:
How much time could I get the quotation after sent Gerber, BOM and test procedure?
A: Within 6 hours for PCB quotation and around 24 hours for PCBA quotation.
Q:
How can I know the process of my PCBA production?
A: 7-10 days for PCB production and components purchasing, and 10 days for PCB assembly and Testing.
Q:
Are my designs secure when I send them to you?
A: Your files are held in complete safety and security while in our possession. Your files are never shared with any third parties; only our colleagues have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
Q:
For small quantity orders, can you produce prototype PCB?
A: Yes we can, we have no MOQ. We have the capability to produce circuit boards in any amount.
